FX-R Fuel Pressure Regulator - 8060

Product Overview

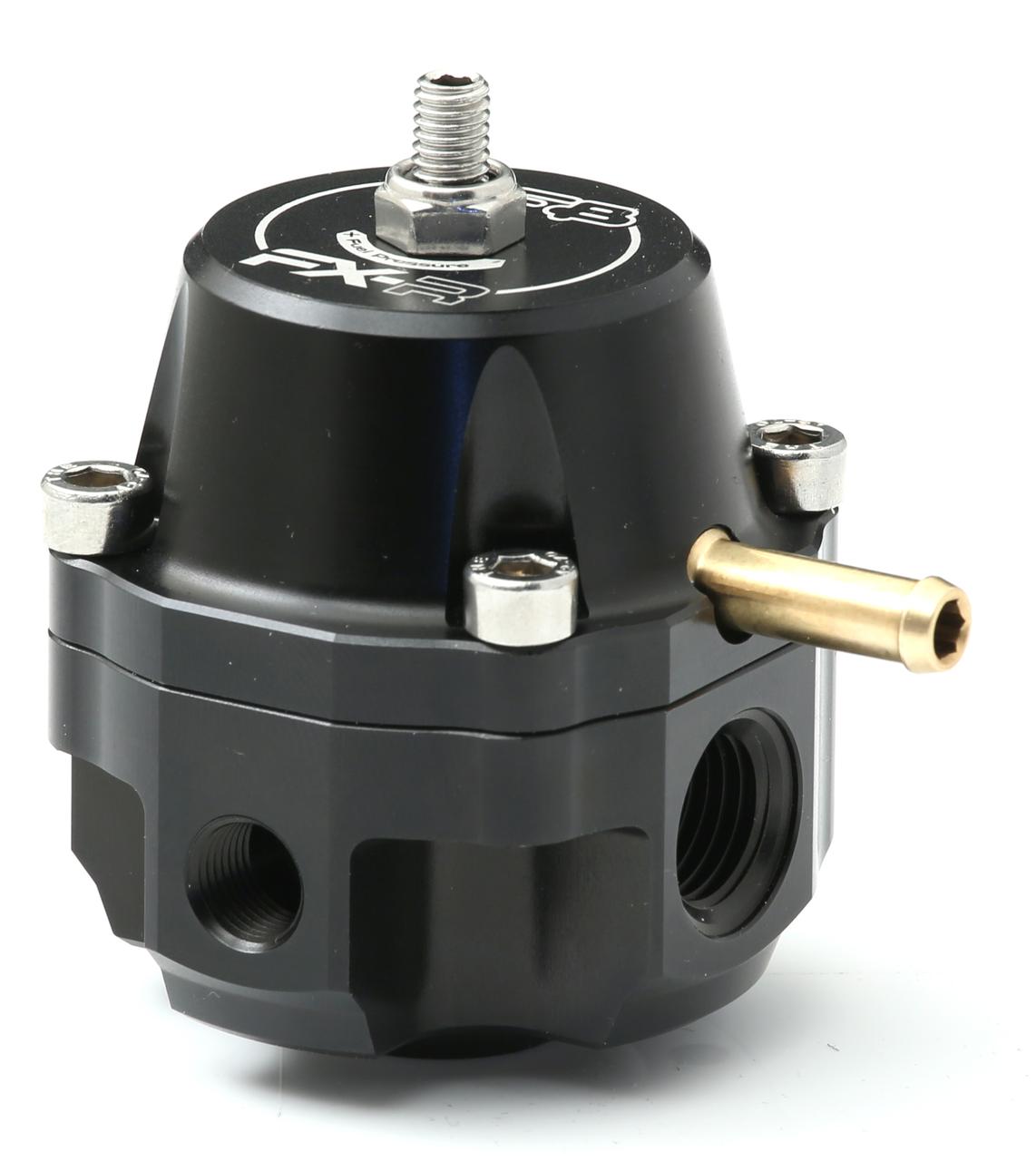

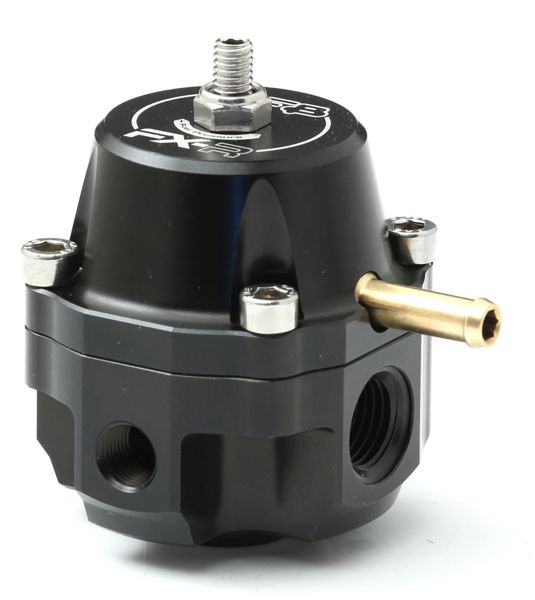

FX-R Fuel Pressure Regulator

NotesFX-R Race Fuel Pressure Regulator from Go Fast Bits can handle up to 1500bhp whether you run petrol/gasoline, Ethanol, Methanol or Diesel
-->

GFB’s 8060 FX-R race version Fuel Pressure Regulator is capable of flowing enough fuel for up to 1500hp, and features two -6AN ORB (O-Ring Boss) inlet ports, two 1/8” NPT gauge ports, and one -6AN ORB outlet port.

The two inlet ports can be used for single or dual rails, and the two gauge ports allow the use of both a mechanical gauge and electronic pressure sensor.

• 2 x -6AN ORB inlet ports
• 2 x 1/8” NPT gauge ports
• 1 x -6AN ORB outlet port
• 1 x 1/16” NPT manifold reference port

Supplied with: FX-R Fuel Pressure Regulator, Mounting bracket, 2 x 1/8” NPT pressure plugs for gauge ports not being used, 1 x -6AN plug for inlet port not being used, 1 x 1/16” NPT x 5/32” (4mm) hose barb.

NotesFX-R Race Fuel Pressure Regulator from Go Fast Bits can handle up to 1500bhp whether you run petrol/gasoline, Ethanol, Methanol or Diesel
